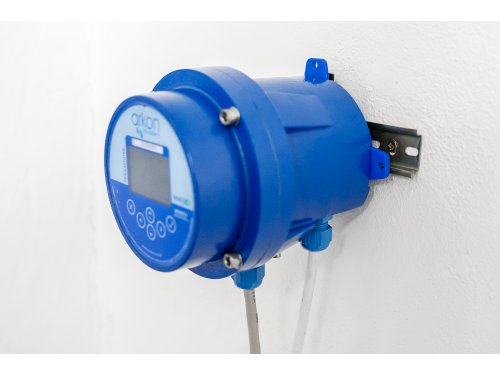

MAGX2 MODULAR DESIGN FLOWMETER
Description
The MAGX2 is mains powered flowmeter with the philosophy of the modular design „plug and play“ keeping all its advantages with a few additional improvements to satisfy the feedback received from our distributors. It is a flexible device suitable for most applications, from the most simple ones where reading is checked visually to the most demanding, ones requiring a high technical solution such as 3G/GPRS/GSM or TCP/IP communication. The basic configuration consists of the transmitter including only display and buttons to guarantee the lowest price. Then is possible to add a widen range of modules to that basic configuration to add optional features as outputs, communications, or data-logging according to each application's requirements. Those features are added by extra modules which are in fact small electronic boards, the size of a large postage stamp, which can be freely installed and removed from the mainboard in seconds.
Build your own flowmeter
We offer you the possibility to customize to get the flowmeter according to your needs and your application.
Plug and play
To know more about the range of communication modules click on the picture below.
Transmitter specification
| Accuracy | ±0,2% (0,5 - 10m/s) of actual value |
| Power supply | 12-35 VDC, 90-250 VAC, including battery backup option |
| Communication | Modbus RTU |
| Flow direction | Bi-directional measurement |
| Ambient temperature | -20 to 60°C |
| Display | LCD 128 x 64 px graphical, contrast setup |
| Control | 6 touch buttons + communication modules |
| Electronics protection | IP68 |
| Other features | Auto-diagnostics Multi-language options Test of excitation coils Empty pipe detection Zero flow adjustment Flow simulator Verification tool available |
| Analogue outputs | 4-20 mA current output signal module Pulse output Pulse 230 output |
| Analogue inputs | External temperature sensor External pressure sensor |
| Digital outputs (communication) | 3G/GPRS/GMS, RS485, RS232, Bluetooth, TCP/IP, Wi-fi, USB, M-Bus |
| Data logger | Micro SD card |
Sensor specification
| Connection types | DIN, ANSI, JIS, other types on request |
| Flange | Carbon steel as standard |
| Nominal size | 20-900 mm, other sizes on request |
| Ambient temperature | -20 to 60°C |
| Sensor protection | IP68 |
| Liner | Hard Rubber, Hygienic Rubber, PTFE, other material on request |
| Electrodes | Hastelloy as standard, other materials on request |
| Measuring tube | Stainless steel 1.4301 |
| Outer casing | Carbon steel (1.0036) as standard |
| External coating | Lacquered finish (anticorrosive) |
| Accessories options | Earthing rings for plastic and lined pipes |
| Coils resistance | 100 Ω |
| Other features | Earthing through 3rd and 4th electrodes |
