MAGE1 ECONOMIC ELECTROMAGNETIC FLOWMETER
Description

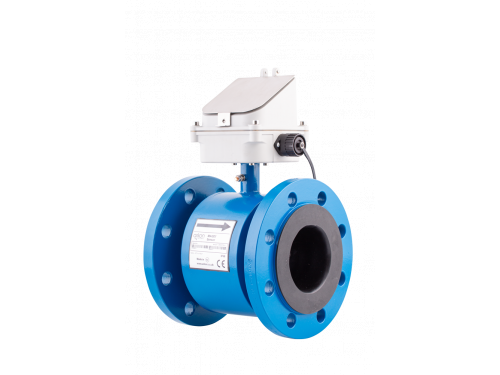

MAGE1 is an economic flowmeter with a carbon steel sensor and plastic transmitter that satisfies standard customer requirements. It is mains powered flowmeter (9-35 VDC) with 4-20 mA output, RS485 communication, and an internal data logger.

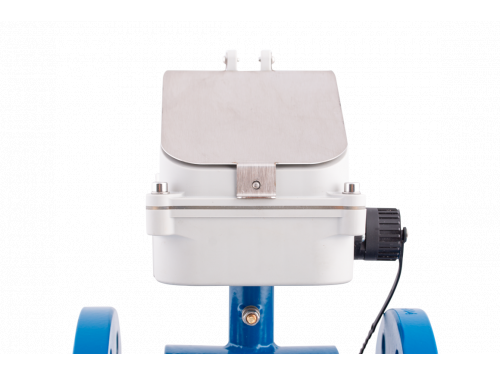

Transmitter specification
| Accuracy | ±0,5% (0,5-10 m/s) of actual value |
| Power supply | 9-35 VDC |
| Communication | Modbus RTU |
| Flow direction | Bi-directional measurement |
| Ambient temperature | -20 to 60°C |
| Display | LCD 128 x 64 px graphical, sleep mode |
| Control | 3 touch buttons |
| Housing material | Glass filled polyamide |
| Connector | CA 6 GS Connector |
| Electronics protection | IP67 |
| Low flow cut-off | 2% of the full scale |
| Other features | Test of excitation coils Empty pipe detection Earthing through 3rd and 4th electrodes |
| 4-20 mA output | Max. current 24 mA |
| Digital communication | RS485 communication bus +I/O |
| Data-logger | Flash memory 131072 records 15 seconds minimal record interval Saves date, time, and total volume |
| Cable length | 3 m as standard, other on request |
Sensor specification
| Connection types | DIN, ANSI, other types on request |
| Flange | Steel 1.0036 or higher |
| Nominal size | 25-250 mm, other sizes on request |
| Ambient temperature | -20 to 60°C |
| Sensor protection | IP67 |
| Liner | Hard Rubber, Hygienic Rubber, PTFE, other material on request |
| Electrodes | Hastelloy as standard, other materials on request |
| Measuring tube | Stainless steel 1.4301 |
| Outer casing | Carbon steel (1.0036) as standard |
| External coating | Lacquered finish (anticorrosive) |
| Accessories options | Earthing rings for plastic and lined pipes |
| Coils resistance | 100 Ω |
| Other features | Earthing through 3rd and 4th electrodes |
